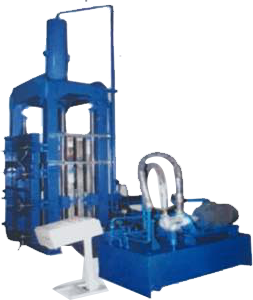

SEMI AUTOMATIC HYDRAULIC BALE PRESS

These presses are most suitable for very compact balling of H DPE, PP Woven Sacks Bags. Compact bales of bags made to facilitate save transportation cost, time and storage space
Capacity : For small bags zo ton – 6o ton

SILENT FEATURES

Four open guide pillars + four guide rods for support of moving platen resulting in Perfect alignment and safety of the hydraulic seals.

Hydraulic double acting cylinder.

Slits in both axes provided for the perfect bale strapping.

The moving platens can be stopped by means of height adjustable limit switches on both side, i.e. upwards and downwards.

Pressure relief valve is provided for pressure adjusting.

Available in a wide range of platform sizes, height and tonnage.

FIBC's /JUMBO BAG HYDRAULIC BALE PRESS

TECHNICAL SPECIFICATIONS
Type : Four Pillar Hydraulic Press + Four Guide Bar
Frame Type : Three sides closed and one side Open able door with Lever arrangment
Capacity : Up to 150 tons
Platen Size : 900 mm x 1100 mm (Slits on both axes)
No. of Cylinder : 1 No. of Main Cylinder
Day Light : 2000111111, Day off : 400 mm
Pressure Range : 0-350 Kg/cm2 Working Pressure :150-200 Kg/ Cm2
Pusher : 1 No. of pusher to push the bale out in tact condition
Electric Motor : 20hp/25hp/30hp
Oil Reservoir : 400 Liters, Oil Required : 35o Liters [Enclo-68/Harmony-68]
Operation : By Push Buttons with Electric Panel
Valve : YU KEN/REXROTH/Hydrank (USA) make, Pump : VELJAN/KOOAN
Cylinder Seals : TECH NOLAN (Italy) / MERKEL (Germany) make

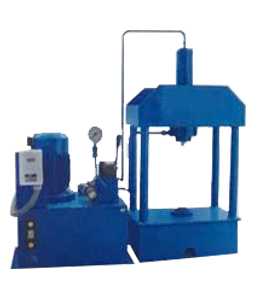

CHEESE PIPE HYDRAULIC STRAIGHTER

TECHNICAL SPECIFICATIONS
No. of Cylinders  :  1 no. main cylinder
Working Pressure  :  5o kg I C1112
Stroke  :  280 mm
Approach Speed  :  17 mm / sec.
Return Speed  :  26-mm/ sec.
Approx. Time for 300 mm travel  :  18 sec.
Electric Motor  :  0.75 k.w. /1 hp
Oil Reservoir : 3o Liters
Oil Required :  27 Liters [Enclo-68 / Harmony-68]
Operation :  By lever operated valve (Polyhydrone)
Pump :  Dowty. / Rexworth
Cylinder Seals :  Techlon ( Italy ) / Markel ( Germany )
